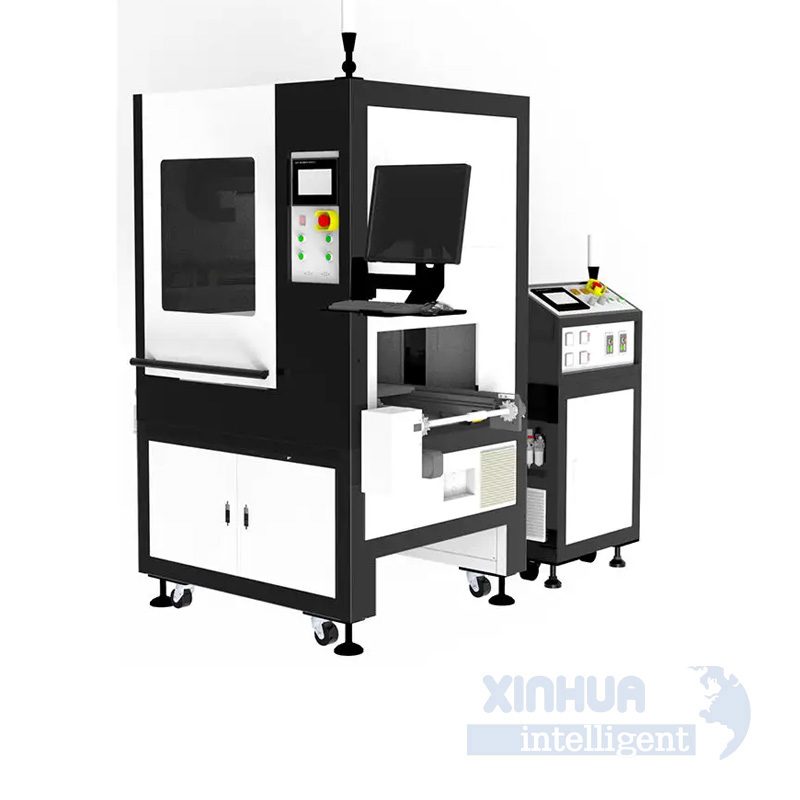

Online Dual Liquid Glue Potting Machine
Online automatic glue potting machine is through the servo motor or stepping motor control metering pump, PCL operating system control precision glue out of the way to achieve 1:1 ~ 100:1 ratio of glue for mixing and filling into the product. Online gluing machine itself with automatic assembly line, three-axis gluing platform to achieve automatic sensing to the inflow of products, automatic product gluing.
Product Parameters
| Models | XY-SY540 |
| Working area | X500*Y400*Y120mm |
| Maximum load | X/Y:20kg;Z:8KG |
| Moving speed | X/Y:≤800mm/s; Z:≤300mm/s |
| Motion accuracy | ±0.01mm |
| Dispensing accuracy | ±0.03mm |
| Glue ratio | 1:1~100:1 |
| Vision system | Optiona |
| Pipeline width | 100~350mm |
| Transmission mode | Timing belt/speed doubling chain/plug-in chain (optional) |
| Incoming induction | Optical fiber /photoelectnic |
| Transmission mode | Servo motor +ball screw |
| Measurement mode | Metering pump |
| Mixed mode | Dynamic mixing /static mixing (optional) |
| Glue storage mode | 2 high precision vacuum pressure barrels + 1 cleaning barrel |
| Operation mode | With vision:PC without vision:teaching pendant |
| Anti-curing function | provided |
| Input power | AC220V 50-60Hz |
| Overall dimension | around W1300*L900*H160mm |
| Weight | around 1500kg |
