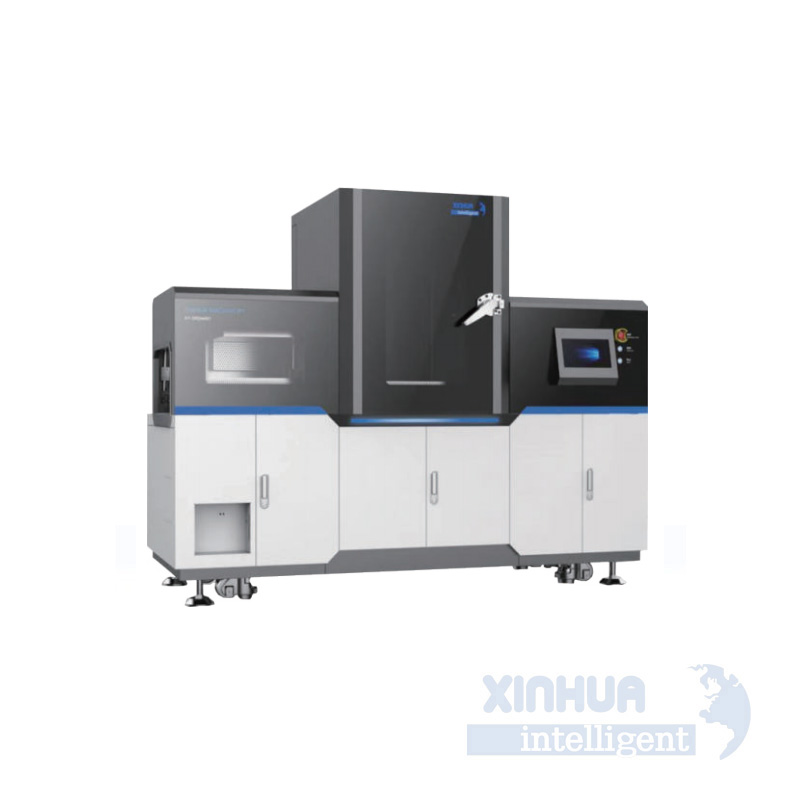

Online 3 Stage Vacuum Glue Potting Machine
The automatic glue potting machine use vacuum glue potting, make glue totally permeate into every corner of the product. Three stages work synchronously, no need to vacuumize and release vacuum repeatedly, high production capacity.
Product Parameters
| Models | XY-DSR4401 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ±3% |
| Ejection accuracy | ±3% |
| Mixing ratio | 1:1~100:1 (Customizable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Glue supply system | Customized external glue supply system according to customers |
| Mixed mode | Dynamic mixing / static mixing (optional) |
| Operating system | PLC+touch screen |
| Operation mode | Start switch |
| Measurement mode | 2 sets of high-precision metering pumps of independent brand (gear pump and screw pump can be) |
| Pipeline circulation system | optional |
| Anti curing function | optional |
| Mixing device | Double layer mixing / single layer mixing (optional) |
| Input power | AC380V 50-60Hz |
| Operating humidity | 20-90% no condensation |
| Overall dimension | about L2100*W900*H1650mm (Dimensions for reference only, subject to actual measurement) |
| Weight | around 2000kg |
