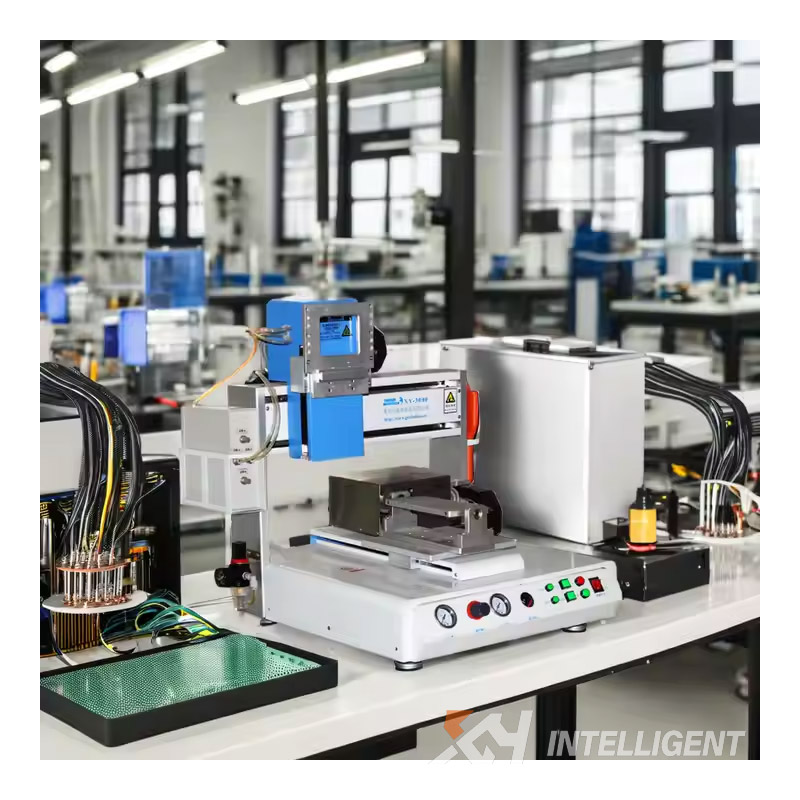

Surface Mount Technology (SMT) glue dispenser machines are essential in electronics manufacturing for applying adhesive to printed circuit boards (PCBs). These machines ensure precise glue application, improving the stability of components during the soldering process.
1. Applications of SMT Glue Dispenser Machine
Component Fixation: Prevents component shifting before reflow soldering.
PCB Assembly: Used for bonding components on single-sided and double-sided PCBs.
Encapsulation: Protects sensitive electronic components from moisture and mechanical stress.
Underfill Process: Provides structural reinforcement for Ball Grid Array (BGA) and Chip Scale Package (CSP) components.
2. Types of SMT Glue Dispenser Machine
a. Manual Dispenser
Operator-controlled glue application.
Suitable for low-volume production or prototyping.
b. Semi-Automatic Dispenser
Requires some operator involvement.
Improves consistency compared to manual dispensers.
c. Fully Automatic Dispenser
High-speed, precision dispensing with minimal human intervention.
Ideal for mass production and complex PCB designs.
3. Key Components of an SMT Glue Dispenser Machine
Dispensing Nozzle: Controls the flow and accuracy of glue application.
Pump System: Ensures consistent glue pressure and flow.
X-Y-Z Motion System: Positions the dispensing head accurately.
Vision System: Uses cameras to align the dispensing process with PCB components.
Control Software: Manages speed, volume, and dispensing patterns.
4. Choosing the Right SMT Glue Dispenser Machine
Factors to Consider:
- Production Volume: Higher volume requires fully automated dispensers.
- Precision Requirements: For micro-components, high-accuracy nozzles are necessary.
- Type of Adhesive Used: Different machines support different viscosities and curing times.
- Budget and ROI: Consider long-term cost savings from automation.
5. Setup and Calibration of an SMT Glue Dispenser Machine
Machine Installation: Ensure a stable and clean environment.
Software Configuration: Input PCB design and dispensing patterns.
Nozzle and Pump Calibration: Adjust for precise glue flow.
Test Dispensing: Run test patterns to verify accuracy.
Adjust Parameters: Fine-tune speed, pressure, and timing for optimal performance.
6. Price Cost
The price of an SMT glue dispenser machine varies based on factors such as brand, model, precision, and automation level. Generally, the cost ranges from $6,000 to $15,000 per unit for fully automatic high-speed glue dispensers used in electronic assembly and LED production lines。
Entry-level or semi-automatic machines may be priced lower, while high-end models with non-contact jet dispensing technology, industrial CCD vision positioning, and servo motors tend to be at the higher end of the price spectrum。
